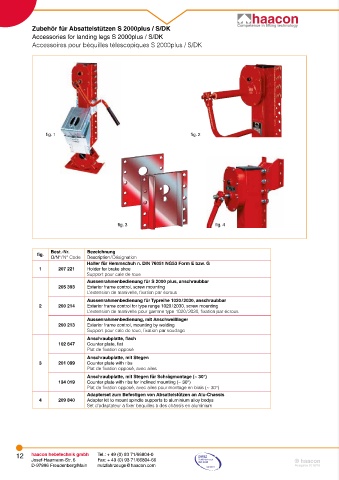

Zubehör für Absattelstützen S 2000plus / S/DK Competence in lifting technology
Accessories for landing legs S 2000plus / S/DK
Accessoires pour béquilles télescopiques S 2000plus / S/DK
fig. 1 fig. 2
fig. 3 fig. 4
Best.-Nr. Bezeichnung
fig.
O/N° / N° Code Description / Désignation
Halter für Hemmschuh n. DIN 76051 NG53 Form E bzw. G
1 207 221 Holder for brake shoe
Support pour cale de roue
Aussenrahmenbedienung für S 2000 plus, anschraubbar
205 393 Exterior frame control, screw mounting
L’extension de manivelle, fixation par écrous
Aussenrahmenbedienung für Typreihe 1020 / 2030, anschraubbar
2 200 214 Exterior frame control for type range 1020 / 2030, screw mounting
L’extension de manivelle pour gamme type 1020 / 2030, fixation par écrous
Aussenrahmenbedienung, mit Anschweißlager
200 213 Exterior frame control, mounting by welding
Support pour cale de roue, fixation par soudage
Anschraubplatte, flach
102 647 Counter plate, flat
Plat de fixation opposé
Anschraubplatte, mit Stegen
3 201 099 Counter plate with ribs
Plat de fixation opposé, avec ailes
Anschraubplatte, mit Stegen für Schrägmontage (~ 30°)
134 019 Counter plate with ribs for inclined mounting (~ 30°)
Plat de fixation opposé, avec ailes pour montage en biais (~ 30°)
Adapterset zum Befestigen von Absattelstützen an Alu-Chassis
4 209 840 Adapter kit to mount spindle supports to aluminium alloy bodys
Set d‘adaptateur à fixer béquilles à des châssis en aluminium
