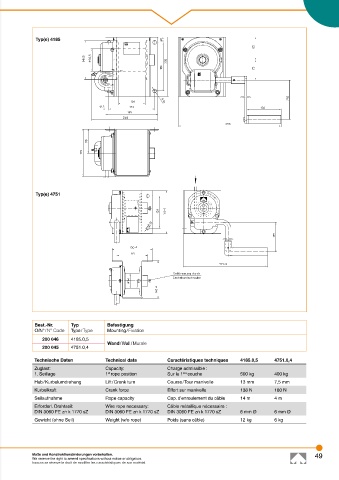

P. 49

Typ(e) 4185
































              Typ(e) 4751



























             Best.-Nr.    Typ          Befestigung
             O/N° / N° Code  Type / Type  Mounting / Fixation
                200 046   4185.0,5
                                       Wand / Wall / Murale
                200 045   4751.0,4
             Technische Daten         Technical data        Caractéristiques techniques  4185.0,5  4751.0,4
             Zuglast:                 Capacity:             Charge admissible :
                                       st
             1. Seillage              1 rope position       Sur la 1 ère  couche     500 kg      400 kg
             Hub / Kurbelumdrehung    Lift / Crank turn     Course / Tour manivelle  13 mm       7,5 mm
             Kurbelkraft              Crank force           Effort sur manivelle     138 N       180 N
             Seilaufnahme             Rope capacity         Cap. d’enroulement du câble  14 m    4 m
             Erforderl. Drahtseil:    Wire rope necessary:  Câble métallique nécessaire :
             DIN 3060 FE zn k 1770 sZ  DIN 3060 FE zn k 1770 sZ  DIN 3060 FE zn k 1770 sZ  6 mm Ø  6 mm Ø
             Gewicht (ohne Seil)      Weight (w/o rope)     Poids (sans câble)       12 kg       6 kg






            Maße und Konstruktionsänderungen vorbehalten.                                                       49
            We reserve the right to amend specifications without notice or obligation.
            haacon se réserve le droit de modifier les caractéristiques de son matériel.
