Levelling devices – For when it gets bumpy

Levelling devices for lifting heights up to 800 mm and system capacities up to 25 t (dynamic) and 25 t (static). Levelling jacks are used for containers that need to be perfectly aligned within a given floor plan, so that they can be linked up to form larger functional units (such as mobile hospitals, field camps).

Levelling jacks

Lifting spindle 2931.10

Lifting spindle 10 t, mounting underneath

Product details

Technical data / type	2931.10
Lifting load per system / support	100 /30 kN
Support load per system / support	100 / 50 kN
Overall height	235 mm
Lifting length	100 mm
Inclination of the load	2°
Ground inclination	10°
Wind load	64 km/h (1C-Container)
Drive torque	130 Nm
Stroke per spindle revolution	5,0 mm
Levelling accuracy	± 0,5°
Operating temperature	-33 … +55 °C
System weight	42 kg
Order number	200411

Levelling jacks

Lifting spindle 2930.10

Lifting spindle 10 t, lateral mounting

Product details

Technical data / type	2930.10
Lifting load per system / support	100 /30 kN
Support load per system / support	100 / 50 kN
Overall height	360 mm
Lifting length	200 mm
Inclination of the load	2°
Ground inclination	10°
Wind load	64 km/h (1C-Container)
Drive torque	130 Nm
Stroke per spindle revolution	5,0 mm
Levelling accuracy	± 0,5°
Operating temperature	-33 … +55 °C
System weight	38 kg
Order number	231623

Levelling jacks

Levelling jack 2724.20

Levelling jacks 6 t, increased static load

Product details

Technical data / type	2724.20
With switchable primary gear	-
Lifting load per system / support	60 /20 kN
Support load per system / support	200 / 100 kN
Overall height	905 mm
Lifting length	500 mm
Inclined position of the load	2°
Ground inclination	10°
Wind load	64 km/h (1C-Container)
Crank force	240 N
Stroke per crank revolution > Load gear > Fast gear	3,3 mm -
Levelling accuracy	± 0,5°
Operating temperature	-33 … +55 °C
System weight	200 kg
Order number	233878
Accessories
Fastening adapter 1 (friction-fit)	217046
Fastening adapter 2 (form-fit)	217047
Fastening adapter 3 (bolted)	217048
Transport wheels	214608

Levelling jacks

Levelling jack 2724.10

Levelling jacks 10 t, low recoil, with increased stability

Product details

Technical data / type	2724.10
dyn. load - system / support	100 / 50 kN
stat. Load system / support	100 / 50 kN
Overall height	~ 1095 mm
Lift max.	500
Inclination of the load	< 5°
Ground inclination	< 10°
Additional load - Wind load	< 100 km/h
Operating temperature	-40 ... +50 °C
System weight	~ 360 kg
Crank force	~ 340 N
Stroke / crank rotation - Load gear - Fast gear	2,7 mm 9,8 mm
Levelling accuracy	±0,1°

Levelling jacks

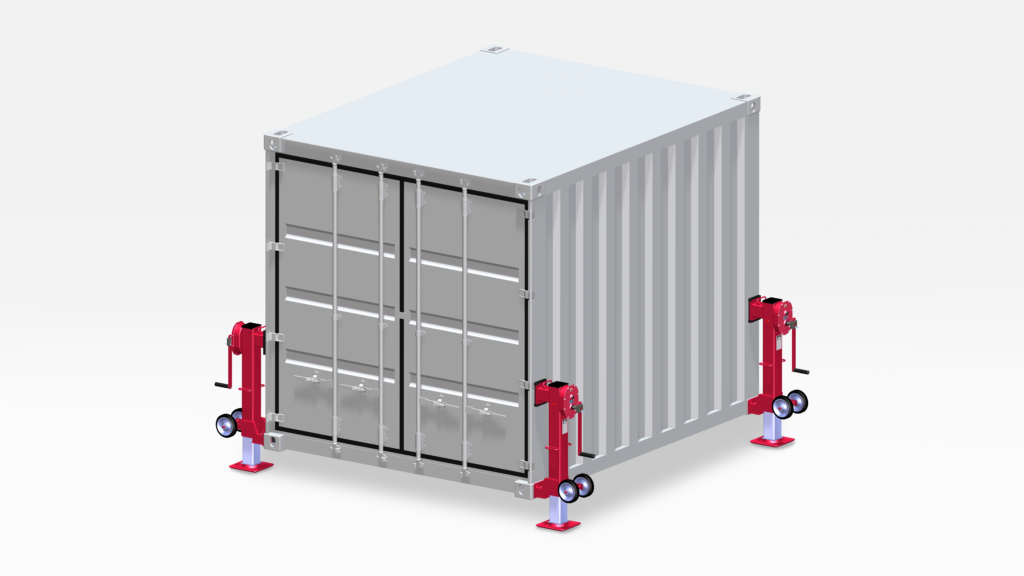

Levelling jack 2724.25

Levelling jacks 25 t

Product details

Technical data / type	2724.20	2724.25	2724.25
with switchable primary gear	-	+	+
Lifting load per system / support	60 /20 kN	250 / 85 kN	240 / 80 kN
Support load per system / support	200 / 100 kN	250 / 125 kN	240 / 120 kN
Overall height	905 mm	905 mm	1105 mm
Lifting length	500 mm	500 mm	700 mm
Inclined position of the load	2°	2°	1°
Ground inclination	10°	10°	10°
Wind load	64 km/h (1C-Container)	64 km/h (1C-Container)	64 km/h (1C-Container)
Crank force	240 N	180 N	180 N
Stroke per crank revolution > Load gear > Fast gear	3,3 mm -	1,0 mm 10 mm	0,6 mm 6 mm
Levelling accuracy	± 0,5°	± 0,5°	± 0,5°
Operating temperature	-33 … +55 °C	-33 … +55 °C	-33 … +55 °C
System weight	200 kg	250 kg	280 kg
Order number	233878	233876	233458
Accessories
Fastening adapter 1 (friction-fit)	217046
Fastening adapter 2 (form-fit)	217047
Fastening adapter 3 (bolted)	217048
Transport wheels	214608

Levelling jacks

Levelling jack 8251.10

Levelling jacks 10 t

Product details

Technical data / type	8251.10	8251.10 (more stroke)
Lifting capacity per system / jack	100 / 33 kN	80 / 27 kN
Support load per systen / jack	100 / 33 kN	80 / 27 kN
Overall height	725 mm	825 mm
Stroke	400 mm	500 mm
Load inclination	2°	2°
Ground slope	10°	10°
Wind load	64 km/h (1C-Container)
Crank force	270 N	230 N
Lift per crank turn	2,2 mm	2,2 mm
Levelling accuracy	± 0,5°
Operating temperature	-33 … +55 °C
Weight per set	112 kg	116 kg
Order number	207847	232775
