P. 43

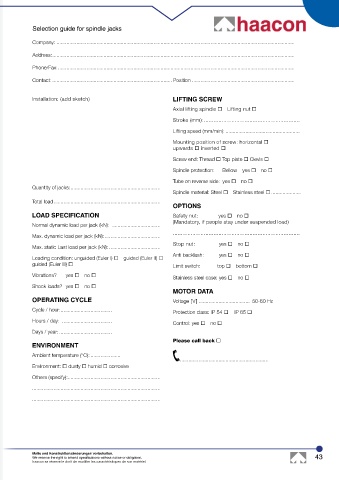

Selection guide for spindle jacks
Company: .......................................................................................................................................................................
Address: ..........................................................................................................................................................................
Phone/Fax: ......................................................................................................................................................................
Contact: .................................................................................... Position ........................................................................
Installation: (add sketch) LIFTING SCREW
Axial lifting spindle Lifting nut
Stroke (mm): ...........................................................
Lifting speed (mm/min): ....................................................
Mounting position of screw: horizontal
upwards inverted
Screw end: Thread Top plate Clevis
Spindle protection: Bellow yes no
Tube on reverse side: yes no
Quantity of jacks: ...............................................................
Spindle material: Steel Stainless steel .....................
Total load ...........................................................................
OPTIONS
LOAD SPECIFICATION Safety nut: yes no
(Mandatory, if people stay under suspended load)
Normal dynamic load per jack (kN): ..................................
..............................................................................
Max. dynamic load per jack (kN): .......................................
Stop nut: yes no
Max. static Last load per jack (kN): ....................................
Anti backlash: yes no
Loading condition: unguided (Euler I) guided (Euler II)
guided (Euler III) Limit switch: top bottom
Vibrations? yes no Stainless steel case: yes no
Shock loads? yes no
MOTOR DATA
OPERATING CYCLE Voltage [ V ] .................................... 50-60 Hz
Cycle / hour: .................................... Protection class: IP 54 IP 65
Hours / day: ................................... Control: yes no
Days / year: .....................................
Please call back
ENVIRONMENT
Ambient temperature (°C): .....................
..............................................................
Environment: dusty humid corrosive
Others (specify): .................................................................
..........................................................................................
..........................................................................................
